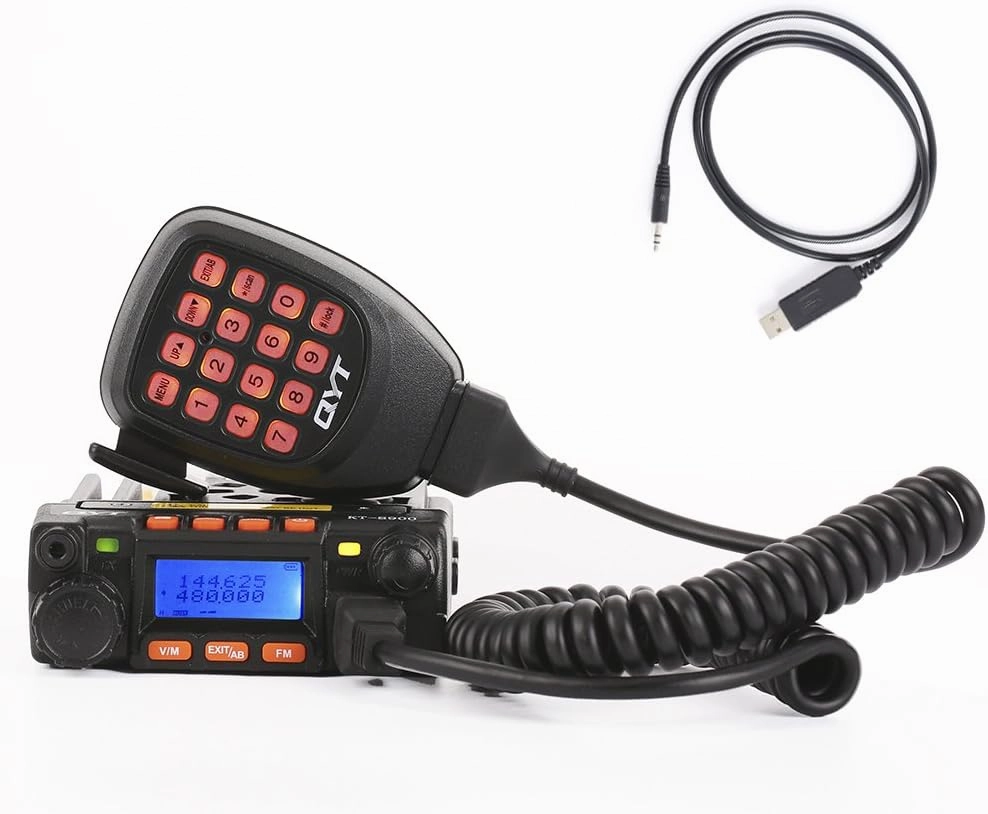

- ★★ QYT KT-8900 Mini Ham Mobile Radio. Chassis Size: 5.7 x 1.9 x 7.5", Weight: 2.6lbs. Package Contents: QYT KT-8900, Mic Hanger, DC Power Cable Cigarette Plug Connector, Mounting Bracket & Screws, User Manual, Cable.
- ★★ Frequency: VHF UHF 2m 70cm; Output Power: 20Watt, Narrow/Wide Band Selectable.
- ★★ Features: Dual Band & Quad Watch & Quad Standby, 200 Channels, MSK/5Tone/2Tone/DTMF/CTCSS/DCS, PTT ID, Auto Lock, Remote stun, Remote Kill.
- ★★ Free Programming Cable Included (P.S. NO FTDI CABLE, Driver Installation NEEDED, Choose the RIGHT VERSION according to your COMPUTER SYSTEM); CHIRP Software Supported; Recommended Antenna Nagoya UT-72, Operating Voltage: 13.8V
- ★★ USEFUL INFO on MIKLOR site about Specification, FAQs & Reference, Driver, Software, Programming issue, Operation. One Proven Model, Lots of USERS or TURORIALS on Youtube, Google, Facebook Group.
Features & Functions
1. QYT KT-8900 upgraded with Cooling Fan
1. Frequency Range: VHF UHF
2. Output Power: VHF 25Watt, UHF 20Watt
3. MSK/5Tone/2Tone/DTMF/CTCSS/DCS
4. Optional signal setting
5. FM Radio Function
6. PTT ID
7. Auto Lock
8. Remote stun
9. Remote Kill
10. Channel Name set
11. 200 Channels
Specification
Channel Spacing: 25KHz 20K 12.5
Frequency Stability: 2.5ppm
Operating Temperature: -20℃ ~ 60℃
Operating Voltage: 13.8V DC ± 15%
Dimension: 4.7*3.9*1.4 in
Weight (with bracket): 2.1 lb
Receiver
Sensitivity: 0.25V / 0.35V
Channel choice:≥70dB /≥60dB
Intermodulation: ≥65dB/≥60dB
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Rejection: ≥70dB /≥70dB
Audio Distortion: ≤5%
Audio output power:≥2W@10%
Package contents
1 x QYT KT-8900 Mobile Radio
1 x Speaker Mic (DTMF function)
1 x Mounting Brackets & Screws
1 x 13.8V DC Power Cable with Cigarette Plug Connector
1 x Programming Cable (under the package)
1 x User Manual
- Is Discontinued By Manufacturer : No
- Product Dimensions : 1.9 x 5.7 x 7.5 inches; 1.83 Pounds
- Date First Available : November 19, 2017
- Manufacturer : QYT
