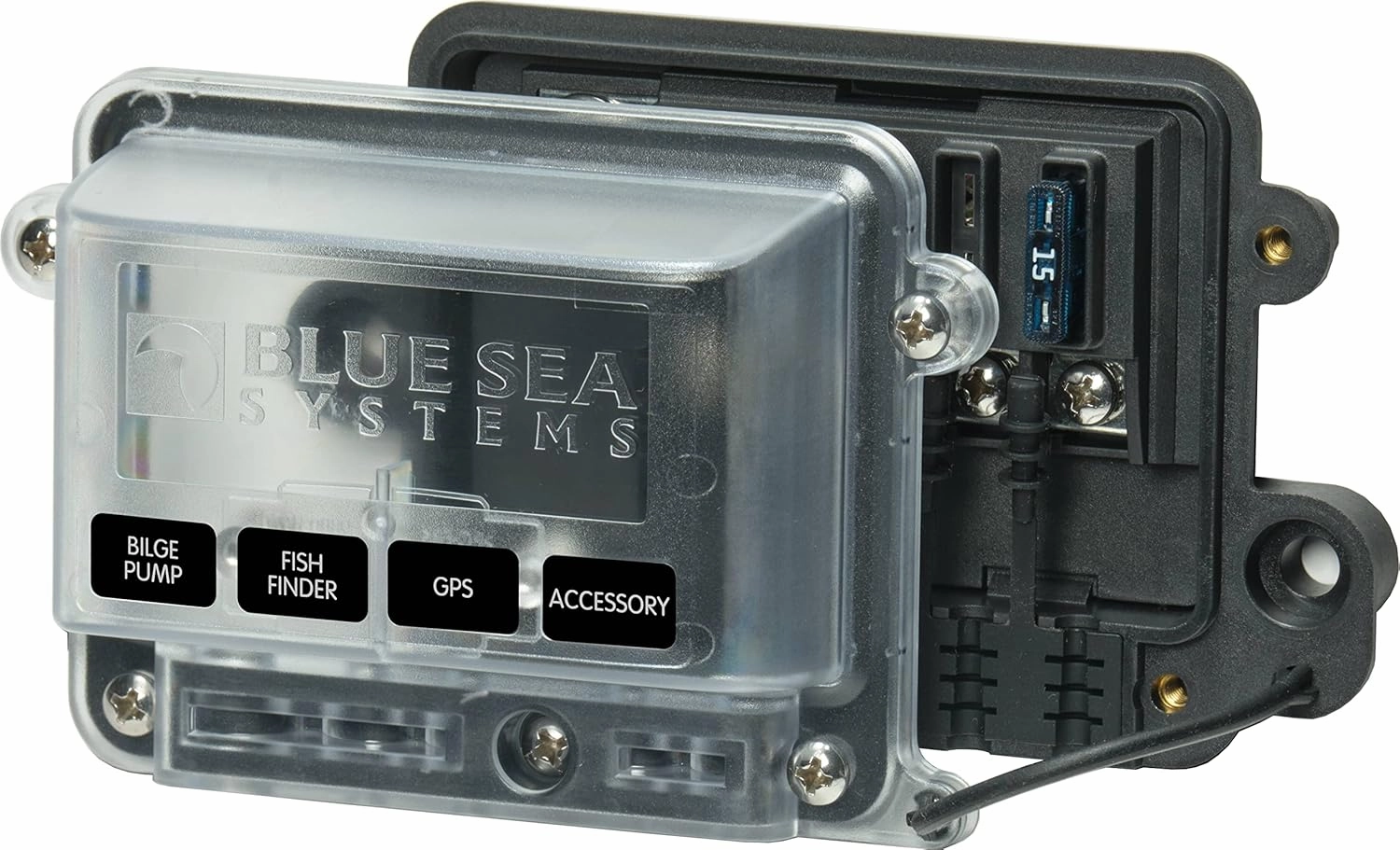

- Voltage Max. Operating: 32V DC, Amperage Max. Operating: 80A per block / 25A per circuit, Fuse Type ATO or ATC fuses and circuit breakers, Input Wire Size: (1) 8 AWG to 4 AWG, Load Wire Size: (4) 16 AWG to 10 AWG, Bus Material: Tin-Plated Copper C11000, Mounting Thru-hole: Accepts 1/4" (6mm) screws, Screw terminal: 4x 8-32 Screws with captive star lock washer, Stud terminal: 1 x 10-32
- Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes, ATO and ATC fast-acting blade fuses, and ATO/ATC-Style Low Profile Circuit Breakers
- Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required and 4 write-on circuit labels
- Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
- Fuses and circuit breakers sold separately. Storeage for spare fuse and fastener in cover
- Not ABYC compliant, not intended for marine applications, use PN 5056100 for marine use
