- Optimize the design, improve the cold start performance and reduce the start-up difficulty.
- After rigorous testing, it can run stably in all kinds of road conditions and prolong its service life.
- The installation is simple, and the best performance of the engine can be restored without modification.
- Adopt high-quality materials, precision manufacturing, ensure full fuel atomization, more complete combustion, and improve power output.
- 17.5mm Compatible For Dellorto SHVA 17.5 ED Compatible For Derbi Senda 50R DRD SM EBE EBS Compatible For Gilera GSM RCR SMT Bultaco Tomos A55 50 80cc

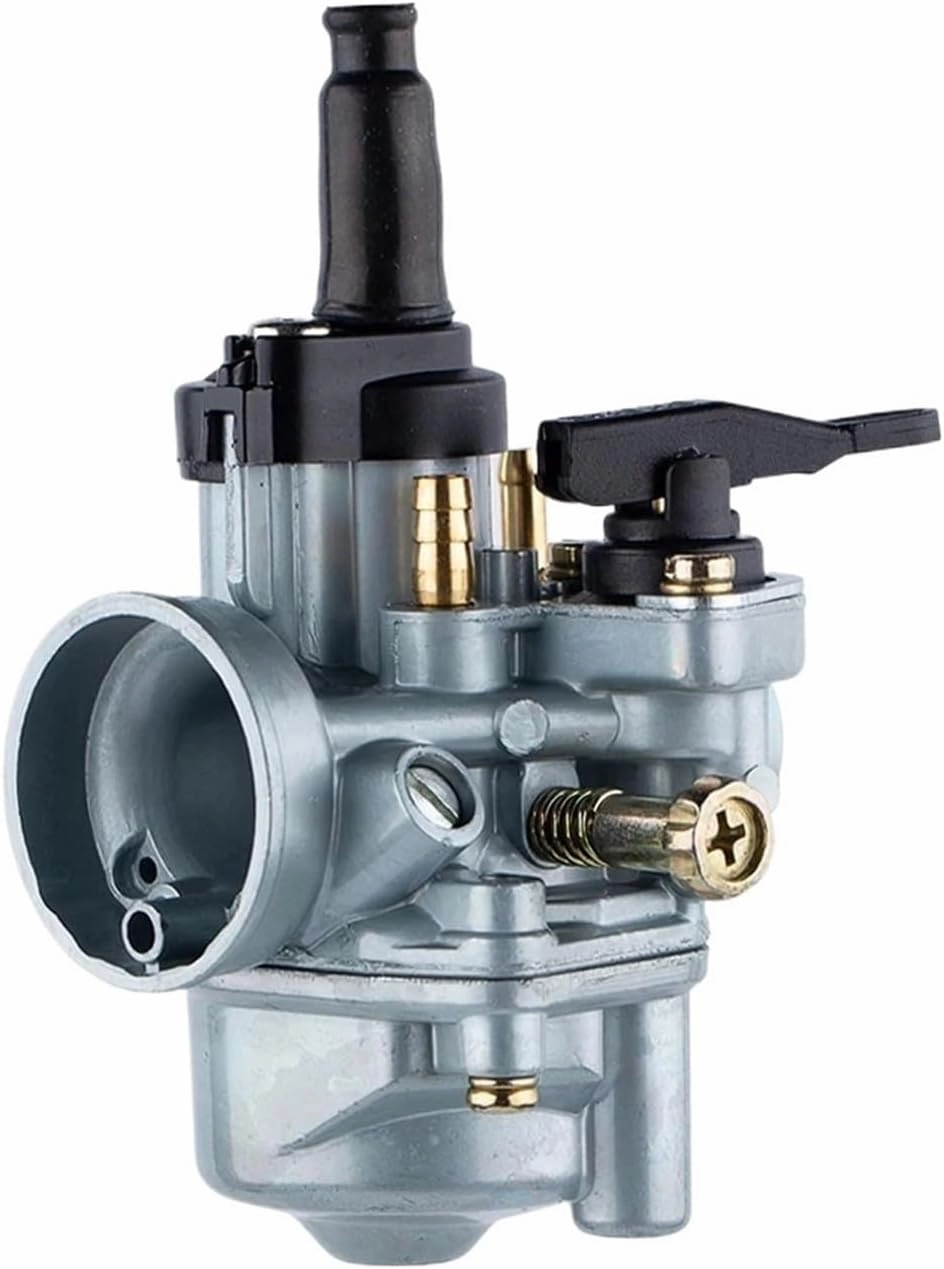

17.5mm Carburator Compatible for Dellorto 17.5 Carb PHVA 17.5 ED Compatible for Derbi Senda, Gilera, Bultaco EBE, EBS Carb
The PHVA 17.5 ED as a replacement part for a defective carburettor.
The PHVA 17.5 shares the carb set up with the other listed vehicles. No tuning required if the vehicle is in original condition. Simply replace and ride.
Fits the original air box and intake manifold.
Choke: manual lever choke the carburettor vacuum port oil terminal
connection engine: 24mm
connection Air filter side: 35mm
main jet: M6 # 083
Pilot jet: M4 # 034
choke jet: M5 # 050
floats: 13700.1
carburettor slide: 40
needle choice: A7
Suitable for modification :
Compatible for Puch PHBG Carb Tomos A55 50cc 80cc Mofas Moped Scooter Dirt Pit Mini Bike
Compatible for :
Compatible for Bultaco-Lobito 50(EBE050)
Compatible for Derbi-Senda 50 R 99 (EBE50) [VTHSENDAR]
Compatible for Derbi-Senda 50 R 00-01 (EBE050) [VTHSDR1AB]
Compatible for Derbi-Senda 50 R DRD 2003 (EBE050) [VTHSDR1GB]
Compatible for Derbi-Senda 50 R DRD Racing 2004-2005 (EBEO50) [VTHSR1A2B]
Compatible for Derbi-Senda 50 R DRD Racing LTD 2005(EBE050)[VTHSR1A2B]
Compatible for Derbi-Senda 50 R Racer 2003E1(EBE050)[VTHSENDGB]
Compatible for Derbi-Senda 50 R X-Race 2004 E2 (EBEO50) [VTHSR1A1A/ VTHSR1B1A]
Compatible for Derbi-Senda 50 R X-Race 2005 E2(EBE050) [VTHSR1A1A/ VTHSR1B1A]
Compatible for Derbi-Senda 50 RX-Treme 2002 (EBE050) [VTHSDR1EB]
Compatible for Derbi-Senda 50 RX-Treme 2003(EBE050) [VTHSDR1EB]
Compatible for Derbi-Senda 50 R X-Treme 2004 E2 (EBE050) [VTHSR1A1A]
Compatible for Derbi-Senda 50 RX-Treme 2005 E2(EBEO50)[VTHSR1A1A/VTHSR1B1A]
Compatible for Derbi-Senda 50 RX-Treme 2005 E2(EBE050) [VTHSR1C1A]
Compatible for Derbi-Senda 50 SM 00-01 Spaini ltaly (EBE050)[VTHSDR1FB]
Compatible for Derbi-Senda 50 SM Black Edition 03-04(EBE050)[VTHSR3A1A]
Compatible for Derbi-
